Diameter 12 mm
Thread pitch 1,5 mm
Length 209 mm
Base 10 mm
Which axle head do you need for your Croozer thru axle?
“N” axle head: If your Croozer is equipped with the Click & Crooz® system (= grey push button on the hitch connector) and the rear-wheel dropouts on your bicycle frame are flat and not blocked by other parts or components.
“XL” axle head: If your Croozer is equipped with the Click & Crooz® system (= grey push button on the hitch connector) and the rear-wheel dropouts on your bicycle frame are either not flat or blocked by other parts or components.
“A” axle head: Your Croozer is not equipped with the Click & Crooz® system? Then you need the “A” axle head with an adapter for mounting all standard axle hitches.
Diameter 12 mm
Thread pitch 1,5 mm
Length 209 mm
Base 20 mm
Which axle head do you need for your Croozer thru axle?
“N” axle head: If your Croozer is equipped with the Click & Crooz® system (= grey push button on the hitch connector) and the rear-wheel dropouts on your bicycle frame are flat and not blocked by other parts or components.
“XL” axle head: If your Croozer is equipped with the Click & Crooz® system (= grey push button on the hitch connector) and the rear-wheel dropouts on your bicycle frame are either not flat or blocked by other parts or components.
“A” axle head: Your Croozer is not equipped with the Click & Crooz® system? Then you need the “A” axle head with an adapter for mounting all standard axle hitches.
Diameter 12 mm
Thread pitch 1,5 mm
Length 209 mm
Which axle head do you need for your Croozer thru axle?
“N” axle head: If your Croozer is equipped with the Click & Crooz® system (= grey push button on the hitch connector) and the rear-wheel dropouts on your bicycle frame are flat and not blocked by other parts or components.
“XL” axle head: If your Croozer is equipped with the Click & Crooz® system (= grey push button on the hitch connector) and the rear-wheel dropouts on your bicycle frame are either not flat or blocked by other parts or components.
“A” axle head: Your Croozer is not equipped with the Click & Crooz® system? Then you need the “A” axle head with an adapter for mounting all standard axle hitches.

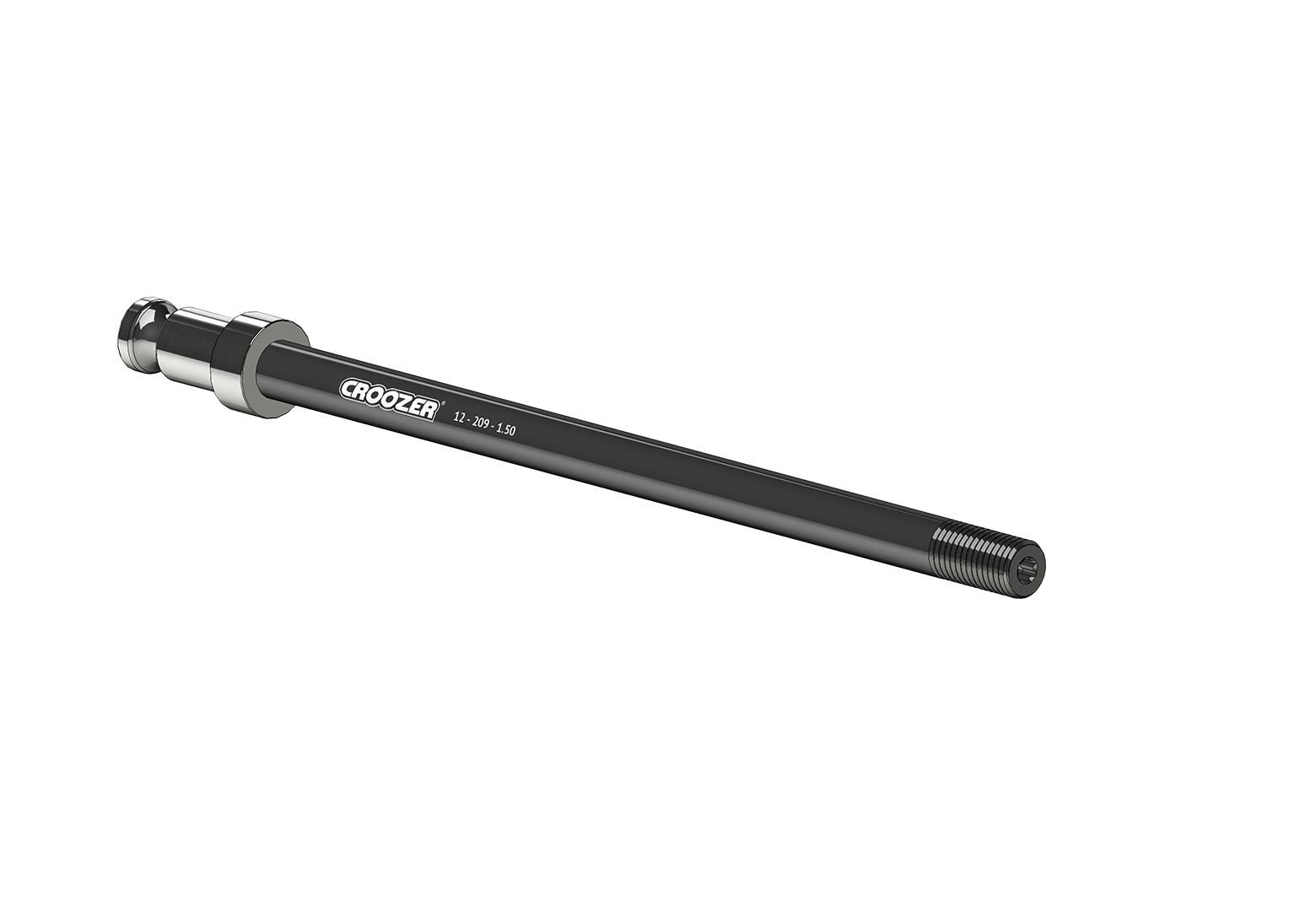

Thru axle hitch 12 - 209 - 1.50 N
| . | . |
|---|---|
| Length | L = 209 mm |
| Thread Pitch | 1.50 mm, diameter 12 mm |
| Thru Axle (Type) | 12 - 209 - 1.50 N |
Thru Axle Hitch N Manual
Article code: 12 - 209 - 1.50 N (L = 209 mm). For all Croozer trailers with lockable Click & Crooz® hitch connector.
